4wd Trophy Truck

[shoei1]

I am doing this as a student project that I am bring to a show in Washington D.C. in October.

The plan is to design everything in Solidworks before I build anything. Once I figure out everything is fit to be built all the parts will be made from the rapid prototyping machines. Last is to make it how it would actualy be manufactured.

This is what I have so far. These parts are just parts that I just copied for references.

1/10th scale(Traxxas slash size) with 2.2 wheels and tires.



Some 3D scaning



More to come...

[shoei1]

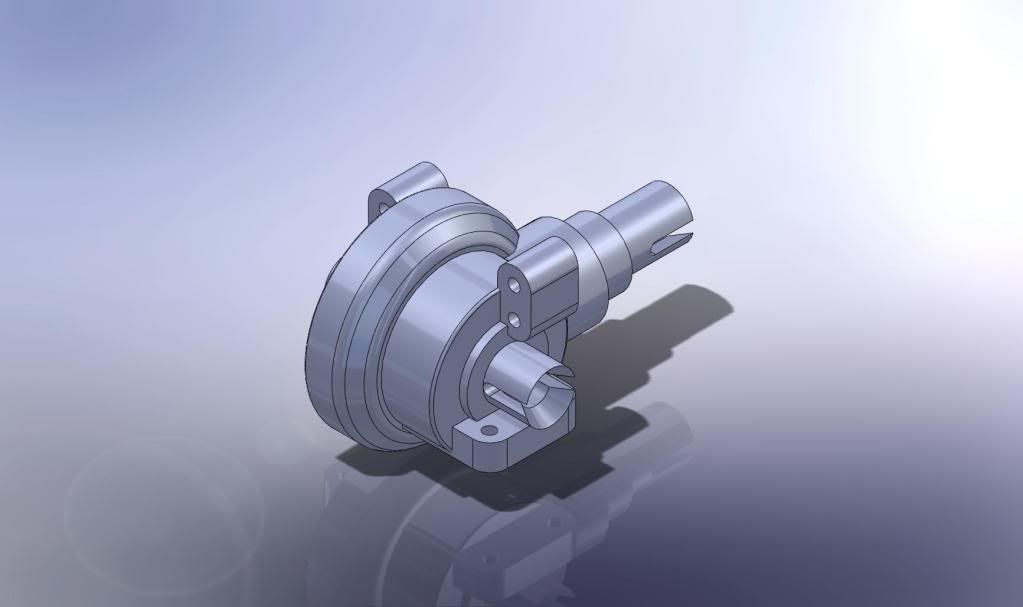

The MT2 Diff ruff

[shoei1]

[shoei1]

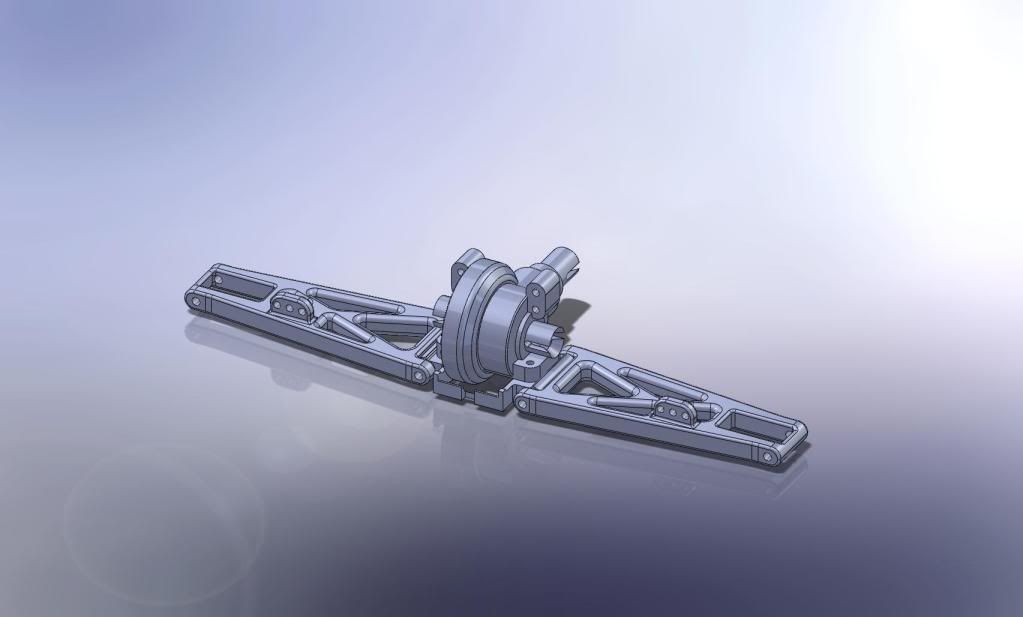

Some more

[cfox109]

Awesome this should be cool.

[roadkill424]

looks good. so when can i except mine

[towtruckmikey]

I have nothing to add but WOW

[Del_Monte]

Awesome stuff, what's that bulkhead put the track width at?

...and I think I need one

[ElChupoCabre]

Very cool bro!! You have da skeelz!!!

[shoei1]

looks good. so when can i except mine

Um ya...

I have nothing to add but WOW

Thanks Pal

Awesome stuff, what's that bulkhead put the track width at?

...and I think I need one

When I need to fix it because I must have miss measured something because there is issues with it. But for sure you and I could work together to make this this awesome.

Very cool bro!! You have da skeelz!!!

Thanks Buddy!

So I have come up with a issue, I cant use the Axial axle with the MT2 front. The front will spin opposite the the rear so I will now be using a Wheely King axle to fix this problem. I actually Im going to be more happy with the WK axle because it will be way stronger then the Axial.

[Del_Monte]

So I have come up with a issue, I cant use the Axial axle with the MT2 front. The front will spin opposite the the rear so I will now be using a Wheely King axle to fix this problem. I actually Im going to be more happy with the WK axle because it will be way stronger then the Axial.

Hmm, I was wondering about that. Oh well, WK stuff is pretty beefy and should work great

[ABOW]

SO its past Oct. is it done, ....or dead?

[shoei1]

Pretty much dead. If I had more money to fund it I would work on it more.
